What Foil Drive has to say
The power and runtime of an eFoil, the lightness and adaptability of an Assist. One tool with endless possibilities.
- Battery Voltage: 43V / 864WH Capacity
- Min. Install Weight*: 7.8kg/17.1lbs (*Weight including nose cone)
- Average Session Time (Heavy Motor Use): 40-90 minutes
- Average Session Time (Light Motor Use): 90-135 minutes

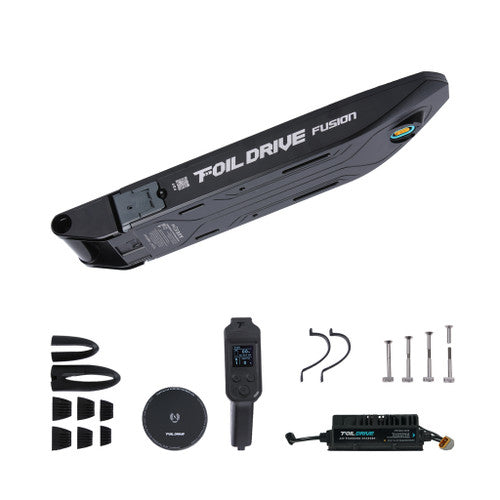

Base Kit Includes: Foil Drive Fusion Unit, Tool Caddy, Split M7 Titanium Bolts, V3 controller, Universal Pod, Tool Kit, 43V Fusion Charger, Foam Track Inserts, Case for Unit.
Please note the Base Kit (no motor, no battery) does not include the Fusion 860 Battery with Caddy or the High Power Motor Complete. If you do not have either of these already, you will need to choose those options as they apply to you for a fully functional kit. The Max and Slim batteries are NOT Compatible with the Fusion.
Features:
- 40% More Power and almost double the runtime of the MAX Power
- Minimal Additional Weight and Length
- NEW V3 Controller with Live GPS, Gear, and Throttle Modes
- Tilt Senor – Motor Cut Off Feature
- Smart BMS System
- Perfect eFoil Alternative that suits both assisted foiling AND eFoiling
FAQ's:
-
What advantages/disadvantages does the Fusion system have over Max/Slim and other Assist systems?
- Most notably, range and torque. The Foil Drive Fusion system provides the highest ratio of range/torque to weight/volume of any assist or Efoil system.
- Disadvantages include being slightly larger and heavier than other Foil Drive units. Compared to most dedicated efoils, it has slightly less runtime per battery.
-
Does the Fusion battery work on my Max, Slim, or Assist+ unit? Max/slim on Fusion? Remote?
- NO, the Fusion battery requires the Fusion Unit. However, your existing parts can be used in conjunction with the Fusion Unit and battery. EG. Motor, cord, Mast adapters, Props, ect… *Older remotes will have less functionality than the new design.
- Max and Slim batteries are NOT functional with the Fusion unit.
- V3 Fusion Remote is backward compatible with all previous Foil Drive systems. *remote a-la-carte available in early 2026
-
Do I need a different cord length for Fusion if I’m re-using my Max/Slim cord?
- You can use the existing cord(s), but they will have a 6cm shorter effective length due to the plug position. EG. A 25cm cord would have roughly a 19cm effective length and so forth…
-
Do I need the HP motor for the Fusion?
- No, V2 works well too. However, we do find it’s best suited for the Foil Drive Fusion system objectives of more power and runtime.
-
Will the Fusion unit fit into my trench board?
- It would depend on the model and your preferred mast placement. Feel free to use this diagram to compare to your channel measurements and box placement to confirm… 656mm x 150mm x 53mm dims (*166mm width for latch function while connected. Same as Max)
